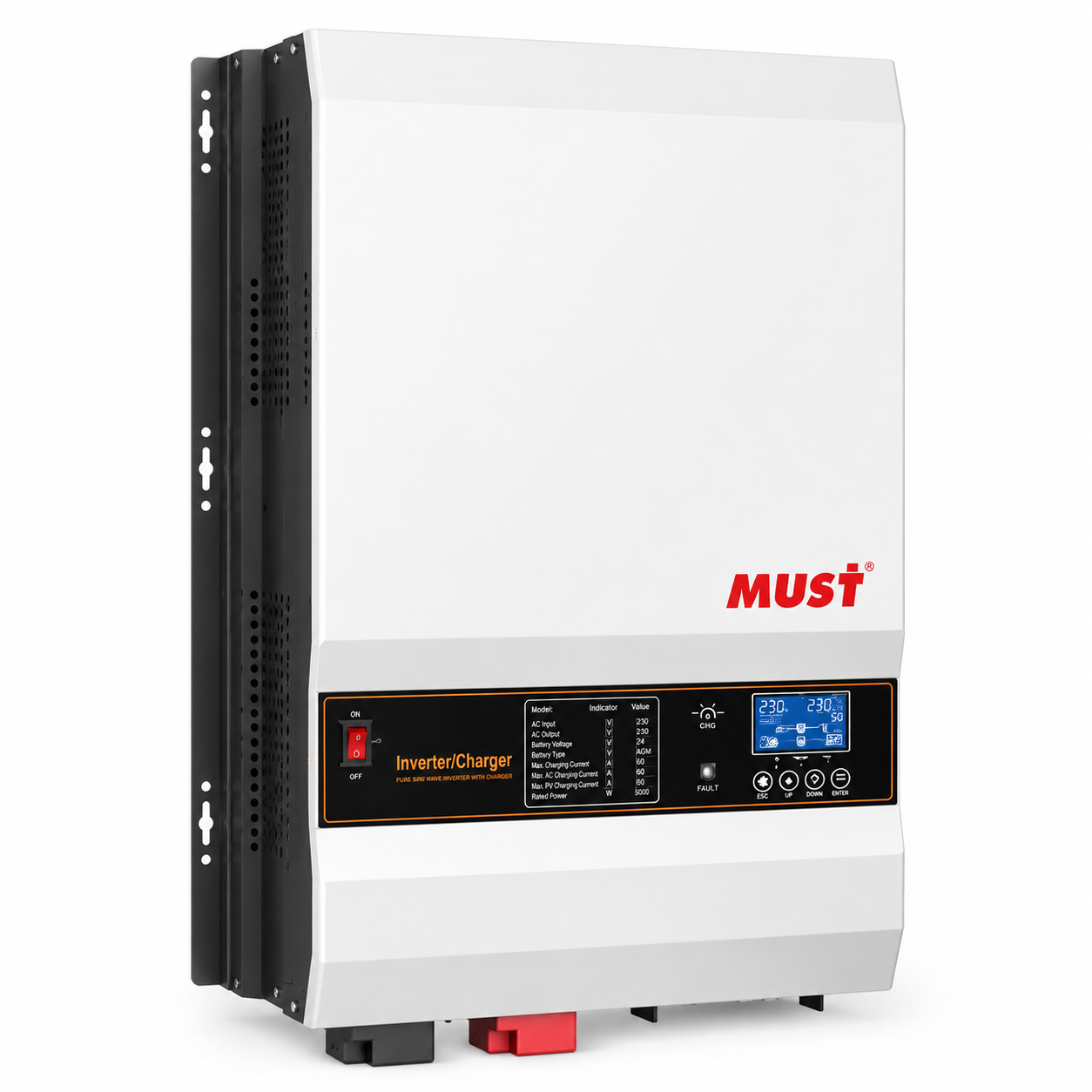

MUST EXP 10kVA 48V Hybrid Solar Inverter in Kenya

The MUST EXP 10kVA 48V Hybrid Solar Inverter in Kenya is a high-power single-phase hybrid off-grid inverter designed for large homes, offices, farms, shops and commercial solar backup systems. The MUST PV19-10048 EXP delivers 10,000W rated pure sine wave output, works with a 48V battery bank, and combines dual MPPT solar charging, battery charging and AC backup in one unit.

With up to 20,000W surge power, 10,000W solar PV capacity, dual MPPT trackers and high charging capability, the MUST EXP 10kVA is suitable for properties that require more power than standard 5kW inverter systems.

Powerful 10kW Pure Sine Wave Output

The MUST PV19-10048 EXP provides 10,000VA / 10,000W rated output with up to 20,000W surge power. This provides strong capacity for residential and commercial loads, including equipment that may require additional starting power.

It can support appropriately sized loads such as:

• Refrigerators and freezers
• Lighting
• Televisions
• Computers and office equipment
• CCTV and security systems
• Pumps
• Washing machines
• Selected air conditioners
• Commercial electrical equipment

The total connected load should always be properly calculated before installation.

Dual MPPT with 10kW Solar Input

The MUST EXP 10kVA inverter incorporates two independent MPPT solar trackers, allowing two solar-array sections to operate independently.

For the PV19-10048 EXP, MUST specifies up to 10,000W of PV capacity, divided across the two MPPT inputs. The inverter supports a 90–450V DC MPPT operating range and up to 500V maximum PV open-circuit voltage when used as a single unit.

Dual MPPT is particularly useful where solar panels are installed on different roof sections or orientations.

48V Lithium Battery Support

The MUST 10kVA Hybrid Solar Inverter operates with a 48V battery system and supports lithium battery integration through BMS communication.

MUST provides RS485/CAN communication, allowing compatible lithium batteries to exchange charging and operating information with the inverter. The system also supports AC/PV lithium battery activation.

This makes it suitable for high-capacity 48V and 51.2V LiFePO4 battery systems used for home and commercial solar storage.

High 150A Solar Charging

The PV19-10048 EXP supports up to 150A maximum solar charging current, helping larger battery banks recharge efficiently when sufficient solar energy is available.

The 10kW model also supports high AC charging capacity, making it suitable for systems where batteries may need to be recharged from grid or generator power.

Smart Dual Output

The MUST EXP series includes a dual-output design for improved load management. This allows essential loads to be prioritized separately from secondary loads, helping protect available battery capacity during outages.

This feature is useful for large homes and businesses where some equipment must remain powered while less important loads can be disconnected when battery capacity becomes limited.

Parallel Expansion

For systems requiring additional inverter capacity, the MUST PV1900 EXP platform supports up to six compatible units operating in parallel.

This provides flexibility for larger residential and commercial installations that may need future expansion.

Key Features

• 10,000W / 10kVA rated output
• 20,000W surge power
• 48V battery system
• Pure sine wave AC output
• Up to 10,000W solar PV input
• Dual MPPT solar controllers
• 90–450V MPPT range
• 500V maximum PV Voc
• Up to 150A solar charging
• Lithium battery BMS communication
• RS485 / CAN communication
• Wi-Fi remote monitoring
• Smart colour LCD display
• Dual output for load management
• Battery-free operation under supported conditions
• Up to 6 units in parallel
• Grid and generator input capability

Technical Specifications

Specifications are based on MUST Energy’s current PV1900 EXP series documentation for the PV19-10048 EXP.

Ideal for High-Power Solar Backup

The MUST EXP 10kVA 48V Hybrid Solar Inverter in Kenya is suitable for large homes, offices, farms, lodges, schools, shops and commercial properties that require higher inverter capacity and reliable battery backup.

Its combination of 10kW output, dual MPPT solar charging, 48V battery compatibility and 20kW surge capacity makes it a strong solution for larger solar installations where a standard 5kW inverter may not provide enough power.

Buy MUST EXP 10kVA 48V Hybrid Solar Inverter in Kenya

The MUST PV19-10048 EXP offers a powerful all-in-one solution for customers looking for a 10kVA hybrid solar inverter in Kenya.

With 10kW pure sine wave output, 10kW solar PV capacity, dual MPPT tracking, 150A solar charging, lithium battery communication and parallel expansion, it is ideal for high-demand residential and commercial solar backup systems.
