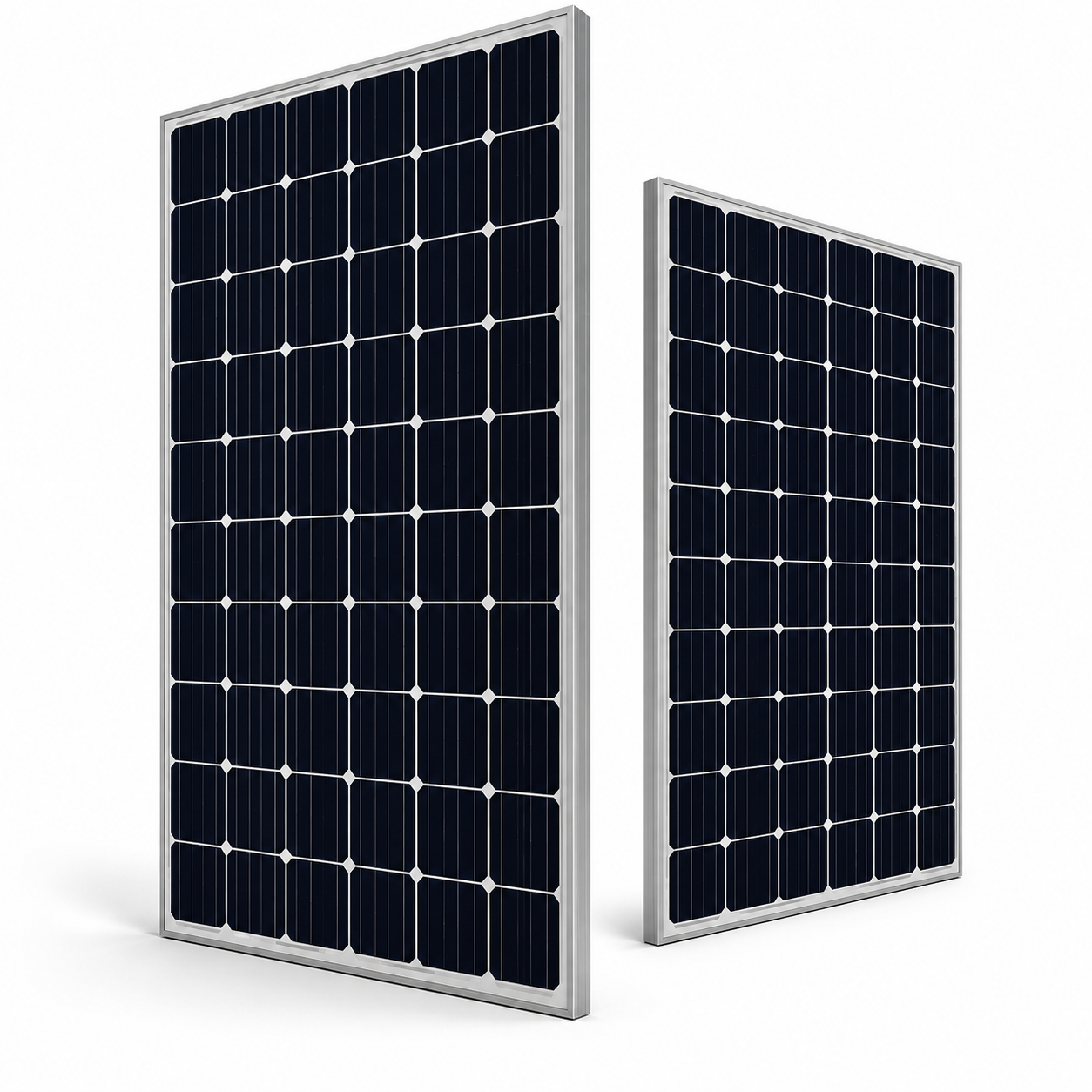

JA Solar 565W Bifacial Monocrystalline Solar Panel in Kenya
KSh 13,500.00
JA Solar 565W Bifacial Monocrystalline Solar Panel is a 565W bifacial monocrystalline PV module for Kenyan residential, commercial and off-grid solar projects. It gives buyers a clear JA Solar option when comparing high-output solar panels by brand, wattage and module type.
10 in stock
The JA Solar 565W Bifacial Monocrystalline Solar Panel in Kenya is a high-output dual-glass solar module designed for homes, businesses, farms, factories, schools and large solar installations. The JA Solar JAM72D30-565/GB delivers 565W rated power with up to 21.9% module efficiency, combining monocrystalline PERC cells, half-cell technology and bifacial energy generation.
Unlike standard monofacial panels, the JA Solar 565W module can generate electricity from both the front and rear sides. Reflected sunlight reaching the rear surface can contribute additional energy, making the panel particularly suitable for ground-mounted systems, solar carports and installations above reflective surfaces.
565W High-Power Solar Output
Each JA Solar 565W panel produces up to 565 watts under Standard Test Conditions, allowing larger solar capacities to be achieved with fewer modules.
- 4 panels = 2.26kWp
- 9 panels = 5.085kWp
- 18 panels = 10.17kWp
- 36 panels = 20.34kWp
Its 21.9% efficiency helps maximize solar generation where roof or installation space is limited.
Bifacial Dual-Glass Technology
The JA Solar JAM72D30-565/GB uses a bifacial double-glass construction capable of converting sunlight received on both sides of the module into electricity.
JA Solar specifies approximately 70% ±10% bifaciality, meaning the rear side can provide useful additional generation when installation conditions allow sufficient reflected sunlight to reach it.
The module uses 2.0mm front glass and 2.0mm rear glass, improving durability and providing protection for the solar cells.
Reliable Electrical Performance
The JA Solar 565W module provides the following electrical performance at STC:
- Maximum Power: 565W
- Module Efficiency: 21.9%
- Maximum Power Voltage (Vmp): 42.42V
- Maximum Power Current (Imp): 13.32A
- Open-Circuit Voltage (Voc): 50.28V
- Short-Circuit Current (Isc): 14.21A
- Power Tolerance: 0 to +5W
These specifications should be considered when matching the panels with a hybrid inverter, grid-tie inverter, off-grid inverter or MPPT solar charge controller.
Key Features
- 565W rated solar output
- 21.9% module efficiency
- Monocrystalline PERC technology
- Bifacial double-glass design
- 144 half-cell configuration
- Approx. 70% ±10% bifaciality
- Positive 0 to +5W power tolerance
- IP68 junction box
- 1500V DC maximum system voltage
- 30A maximum series fuse
- 2.0mm front and rear glass
- Strong mechanical-load capability
- 12-year product warranty
- 30-year linear power output warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | JA Solar |
| Model | JAM72D30-565/GB |
| Panel Type | Bifacial Monocrystalline |
| Cell Technology | Mono PERC |
| Rated Power | 565W |
| Module Efficiency | 21.9% |
| Cell Configuration | 144 Half Cells |
| Vmp | 42.42V |
| Imp | 13.32A |
| Voc | 50.28V |
| Isc | 14.21A |
| Bifaciality | 70% ±10% |
| Power Tolerance | 0 to +5W |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Junction Box | IP68, 3 Diodes |
| Front / Rear Glass | 2.0mm / 2.0mm |
| Dimensions | 2278 × 1134 × 30mm |
| Weight | 31.8kg |
| Operating Temperature | -40°C to +85°C |
| Front Mechanical Load | Up to 5400Pa |
| Rear Mechanical Load | Up to 2400Pa |
Specifications are based on JA Solar’s manufacturer documentation for the JAM72D30-565/GB.
Ideal for Solar Projects in Kenya
The JA Solar 565W Bifacial Solar Panel is suitable for homes, offices, farms, schools, hotels, warehouses, factories, solar water-pumping systems, hybrid solar systems and commercial PV projects.
Its combination of 565W output, 21.9% efficiency, bifacial generation and durable dual-glass construction makes it a strong option for customers looking to generate more solar electricity while making efficient use of available installation space.
Buy JA Solar 565W Bifacial Monocrystalline Solar Panel in Kenya
The JA Solar 565W Bifacial Monocrystalline Solar Panel in Kenya provides high solar output, reliable construction and additional energy-generation potential from its rear surface.
The JAM72D30-565/GB is an excellent choice for residential and commercial solar installations that require high power density, bifacial technology and dependable long-term performance.
