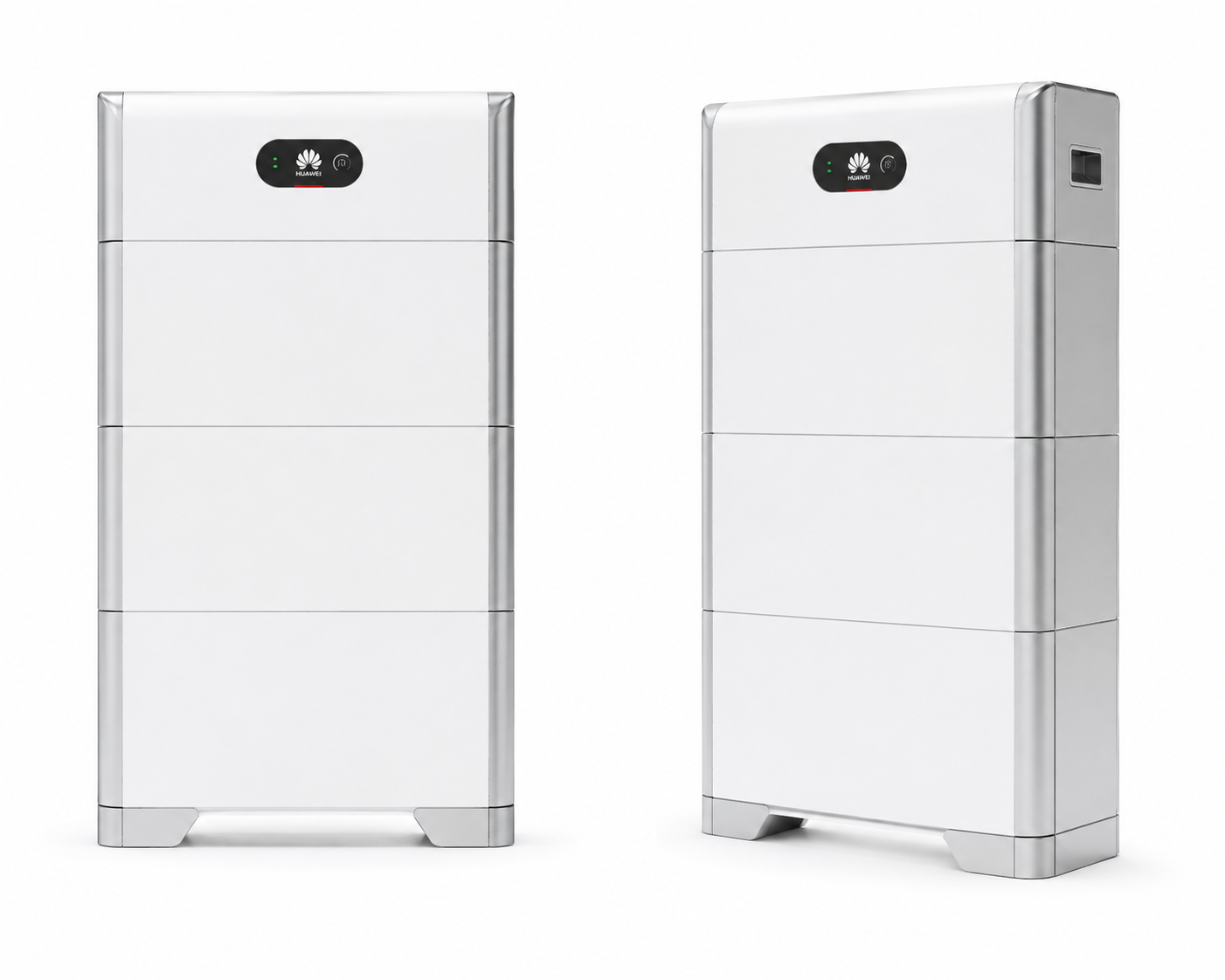

Huawei LUNA2000-5-E0 5kWh Battery in Kenya

The Huawei LUNA2000-5-E0 5kWh High-Voltage Battery Module in Kenya is a premium LiFePO4 solar energy-storage module designed for Huawei residential and small commercial Smart PV systems requiring efficient, intelligent and expandable battery storage.

Each LUNA2000-5-E0 module provides 5kWh of battery capacity and 5kWh of usable energy under Huawei’s specified test conditions. It forms part of the Huawei LUNA2000-5/10/15-S0 Smart String Energy Storage System, allowing storage capacity to be expanded from 5kWh to 10kWh or 15kWh per battery tower, with two compatible systems supporting up to 30kWh total storage capacity.

Built using Lithium Iron Phosphate (LiFePO4) battery cells and Huawei’s module-level energy optimization architecture, the LUNA2000 is designed to store excess solar energy during the day and make that energy available when it is needed later.

For homeowners and businesses searching for a Huawei 5kWh lithium battery in Kenya, the LUNA2000-5-E0 offers a sophisticated high-voltage energy-storage solution with 100% depth of discharge, modular expansion, IP66 protection, FusionSolar integration and compatibility with selected Huawei SUN2000 inverters.

Important: LUNA2000-5-E0 Is a Battery Module

The Huawei LUNA2000-5-E0 is the 5kWh battery module, not the complete Huawei LUNA2000 storage system.

For a functioning battery system, Huawei specifies the:

LUNA2000-5-E0 – 5kWh Battery Module

together with the:

LUNA2000-5KW-C0 – Power Control Module

Huawei states that the power module and battery modules are ordered separately in the required quantities.

This distinction is important when comparing Huawei LUNA2000 prices in Kenya, because some quotations may be for the battery module only while others may include the power-control module, mounting accessories and installation.

Why Choose the Huawei LUNA2000-5-E0?

The Huawei LUNA2000 5kWh Battery Module is designed as part of an intelligent Huawei solar ecosystem rather than as a generic high-voltage battery.

Its major advantages include:

• 5kWh battery capacity per module
• 5kWh usable energy
• 100% depth of discharge under specified test conditions
• Lithium Iron Phosphate (LiFePO4) cells
• High-voltage battery architecture
• Module-level energy optimization
• Expandable 5kWh modular design
• 5kWh, 10kWh and 15kWh tower configurations
• Up to 30kWh with two compatible systems
• Compatible with selected Huawei SUN2000 inverters
• Huawei FusionSolar ecosystem integration
• Floor-standing installation as standard
• Optional wall mounting
• IP66 protection
• Outdoor or indoor installation subject to Huawei requirements
• Natural-convection cooling
• Wide -20°C to +55°C operating range
• Low noise level
• Certified to major international battery standards

Huawei’s current East Africa technical specifications confirm these features for the LUNA2000-S0 platform.

5kWh of Usable Solar Energy Storage

Each Huawei LUNA2000-5-E0 provides:

Battery module capacity: 5kWh

Battery usable capacity: 5kWh

Huawei specifies this usable-energy figure using 100% depth of discharge at a 0.2C charge/discharge rate and 25°C at beginning of life.

This means the battery system is designed to make excellent use of the installed energy-storage capacity.

Stored solar energy can be used:

• In the evening
• At night
• During periods of low solar generation
• To increase solar self-consumption
• To reduce dependence on grid electricity
• For backup applications when the complete Huawei system includes compatible backup equipment

Actual battery operation depends on inverter settings, system configuration, battery condition and Huawei’s operating limits.

Store Solar Energy Instead of Wasting It

Solar panels often produce their highest energy output during the middle of the day, when household electricity consumption may be relatively low.

Without battery storage, surplus solar power may not always be fully utilized on-site.

The Huawei LUNA2000 5kWh battery allows compatible Huawei solar systems to store excess generation for later use.

A typical energy cycle can work like this:

During the day: Solar panels supply household loads and charge the LUNA2000 battery.

In the evening: Battery energy can supply loads after solar production decreases.

At night: Stored solar energy can continue reducing reliance on grid electricity until the configured battery discharge limit is reached.

This helps increase the amount of solar electricity consumed directly by the property.

Lithium Iron Phosphate Battery Technology

The Huawei LUNA2000-5-E0 uses Lithium Iron Phosphate (LiFePO4) battery-cell technology.

LiFePO4 chemistry is widely used in stationary energy storage because of its combination of:

• Excellent thermal stability
• High cycling capability
• Good charging performance
• Reliable energy storage
• Long-term suitability for solar applications

Huawei combines these LFP cells with its intelligent energy-management architecture to create a complete Smart String ESS platform.

100% Depth of Discharge

Huawei specifies 100% depth of discharge (DoD) for the LUNA2000-S0 battery under defined test conditions.

This allows the storage system to make a high proportion of installed battery capacity available for use.

For the 5kWh configuration, Huawei therefore specifies 5kWh battery capacity and 5kWh usable energy.

Huawei notes that operating circumstances can affect minimum state-of-charge requirements; for example, under certain conditions where the system has not detected sunlight for at least 24 hours, the minimum end-of-discharge SOC is 15%.

Module-Level Energy Optimization

One of the defining characteristics of Huawei’s LUNA2000 architecture is its module-level energy optimization.

Rather than treating every battery module as a simple passive block, Huawei’s modular architecture is designed to optimize energy management at battery-module level.

This becomes particularly useful as additional battery modules are installed.

It allows the Huawei LUNA2000 system to provide scalable storage while maintaining intelligent energy management within the Huawei ecosystem.

Expand from 5kWh to 10kWh or 15kWh

The LUNA2000-5-E0 uses a modular architecture.

One power-control module can be combined with:

Battery Modules	Usable Storage
1 × LUNA2000-5-E0	5kWh
2 × LUNA2000-5-E0	10kWh
3 × LUNA2000-5-E0	15kWh

Huawei officially specifies these 5kWh, 10kWh and 15kWh configurations for the LUNA2000-S0 system.

This makes it possible for customers to select battery capacity according to their current electricity requirements.

Expand Up to 30kWh

Need more storage?

Huawei supports two LUNA2000-S0 systems operating in parallel, allowing total battery storage to reach up to 30kWh when correctly configured.

A large configuration can therefore provide:

Tower 1: 15kWh

Tower 2: 15kWh

Total: 30kWh

This scalability makes the Huawei LUNA2000 suitable for customers whose energy-storage requirements may increase over time.

2.5kW Output with One 5kWh Module

Huawei specifies the complete LUNA2000-5-S0 system with one LUNA2000-5-E0 battery module at:

Maximum output power: 2.5kW

Peak output power: 3.5kW for 10 seconds.

When two or three battery modules are installed, Huawei specifies:

Maximum output: up to 5kW

Peak output: up to 7kW for 10 seconds.

This is another important reason to correctly size the battery bank according to inverter power and expected electrical loads.

A single 5kWh module should not automatically be assumed to provide the same output power as a larger 10kWh or 15kWh battery configuration.

High-Voltage Battery Architecture

The Huawei LUNA2000-5-E0 is a high-voltage battery module.

It should not be confused with common 48V / 51.2V rack-mount lithium batteries.

Huawei specifies the complete S0 storage-system operating voltages according to the inverter architecture.

For compatible single-phase systems:

Nominal system voltage: 450V

Operating range: 350–560V

For compatible three-phase systems:

Nominal system voltage: 600V

Operating range: 600–980V.

These are system-level battery operating voltages when the battery module works with the required Huawei power module and compatible inverter.

Because this is a high-voltage system, installation and servicing should only be carried out by properly qualified technicians.

Designed for Huawei SUN2000 Inverters

Huawei’s current East Africa specification lists the LUNA2000-S0 as compatible with selected Huawei inverter families including:

• SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
• SUN2000-8/10K-LC0
• SUN2000-3/4/5/6/8/10KTL-M1
• SUN2000-12/15/17/20/25K-MB0
• SUN2000-5/6/8/10/12K-MAP0
• SUN5000-8/12K-MAP0
• SUN5000-17/25K-MB0.

Exact compatibility should still be confirmed for the particular inverter, firmware, battery quantity and installation design.

Excellent Pairing with Huawei SUN2000-5KTL-L1

The Huawei LUNA2000-5-E0 is particularly attractive for homes already using compatible Huawei single-phase hybrid inverters such as the SUN2000-5KTL-L1.

This allows the solar inverter, battery storage and monitoring platform to operate within the same Huawei ecosystem. Huawei officially lists the SUN2000-L1 family among compatible inverters for LUNA2000-S0.

This type of integrated architecture can simplify energy monitoring and system management compared with combining unrelated components.

Huawei FusionSolar Energy Monitoring

The LUNA2000 battery forms part of Huawei’s FusionSolar Smart PV ecosystem.

When paired with the correct Huawei inverter, communication equipment and monitoring setup, system owners can monitor energy flows through Huawei’s FusionSolar platform.

This can provide visibility into areas such as:

• Solar generation
• Battery state of charge
• Battery charging
• Battery discharging
• Grid consumption
• Property consumption
• Historical energy performance
• System alarms and operating status

This integrated monitoring is a major reason customers choose a complete Huawei solar and storage ecosystem.

Battery Status Indicator

Huawei specifies:

• SOC status indicator
• LED indicator

for the LUNA2000-S0 storage system.

These provide convenient local visual indication of system status in addition to digital monitoring through the compatible Huawei system.

RS485 and CAN Communication

Huawei lists RS485 / CAN communication on the LUNA2000-S0 system, with CAN specifically identified for parallel operation.

Communication between the energy-storage system and compatible Huawei equipment allows coordinated control of battery charging, discharging and system operation.

IP66 Protection

The current Huawei East Africa specification gives the LUNA2000-S0 an IP66 protection rating.

This provides strong protection against dust and water ingress according to the IP66 classification.

Huawei lists the battery for outdoor or indoor installation, while specifically noting that outdoor installation is recommended and indoor installations should follow the user manual.

This gives considerably more installation flexibility than batteries designed exclusively for protected indoor environments.

Wide Operating Temperature Range

Huawei specifies an operating-temperature range of:

-20°C to +55°C.

The system also supports:

Relative humidity: 5%–95%

Maximum operating altitude: 4,000m, with derating above 2,000m.

Correct installation conditions should always follow Huawei’s current manual and warranty requirements.

Natural Convection Cooling

The Huawei LUNA2000 uses natural convection cooling rather than depending on conventional forced-air cooling for normal operation.

Huawei specifies typical noise emission below 29dB under its defined measurement conditions.

This makes the battery system particularly suitable for residential environments where excessive equipment noise would be undesirable.

Compact Modular Design

Each LUNA2000-5-E0 battery module measures approximately:

670mm × 150mm × 360mm

and weighs approximately:

50kg, with Huawei noting a ±3% product tolerance.

The power-control module measures:

670mm × 150mm × 240mm

and weighs approximately:

12kg.

The completed 5kWh system therefore has a clean vertical design suitable for modern residential energy-storage installations.

Floor or Wall Installation

Huawei specifies:

Floor stand – standard

Wall mounting – optional.

This gives installers flexibility when selecting a suitable battery location.

The optional wall bracket is ordered separately where wall mounting is required.

Huawei LUNA2000-5-E0 Technical Specifications

Specification	Details
Brand	Huawei
Series	LUNA2000-S0
Battery Module	LUNA2000-5-E0
Battery Technology	LiFePO4 / Lithium Iron Phosphate
Battery Module Capacity	5kWh
Usable Energy	5kWh
Depth of Discharge	100% under stated test conditions
Modules per Tower	1–3
Tower Capacity	5 / 10 / 15kWh
Maximum Parallel Systems	2
Maximum Storage Capacity	30kWh
Max. System Output – 5kWh Configuration	2.5kW
Peak Output – 5kWh Configuration	3.5kW / 10 sec
Single-Phase Nominal System Voltage	450V
Single-Phase Operating Range	350–560V
Three-Phase Nominal System Voltage	600V
Three-Phase Operating Range	600–980V
Battery Module Dimensions	670 × 150 × 360mm
Battery Module Weight	Approx. 50kg
Protection Rating	IP66
Operating Temperature	-20°C to +55°C
Relative Humidity	5%–95%
Maximum Altitude	4,000m
Cooling	Natural Convection
Noise	<29dB typical
Installation	Floor Stand / Optional Wall Mount
Communication	RS485 / CAN
Required Power Module	LUNA2000-5KW-C0

Huawei’s current Kenya/East Africa specification confirms the battery capacity, system configurations, environmental ratings, inverter compatibility and ordering arrangement above.

International Safety Certifications

Huawei lists several certifications and compliance standards for the LUNA2000-S0 platform, including:

• CE
• RCM
• CEC
• VDE2510-50
• IEC 62619
• IEC 60730
• UN38.3.

These certifications strengthen the LUNA2000’s positioning as a professionally engineered residential battery-storage solution.

Ideal for Home Solar Energy Storage

The Huawei LUNA2000 5kWh battery in Kenya is particularly suitable for residential customers who want to store solar electricity and reduce reliance on the grid.

When integrated into an appropriately designed Huawei solar system, battery energy can support suitable household loads such as:

• Lighting
• Refrigerators
• Wi-Fi
• Television
• Computers
• CCTV
• Home-office equipment
• Entertainment systems
• Other appropriate electrical loads

The exact backup duration depends on load demand, battery capacity and system configuration.

Reduce Grid Electricity Consumption

A Huawei solar-plus-storage system can increase the proportion of solar electricity consumed directly within the property.

Instead of purchasing grid electricity immediately after sunset, stored solar energy can be discharged from the battery.

This makes battery storage particularly attractive for households whose electricity consumption remains high in the evenings.

Increasing battery capacity from 5kWh to 10kWh or 15kWh can provide additional stored energy where daily consumption justifies the larger system.

Backup Power Requires the Correct Huawei System

The LUNA2000-5-E0 battery module does not by itself create backup power during a blackout.

Backup functionality depends on the:

• Compatible Huawei inverter
• LUNA2000 power-control module
• Battery configuration
• Compatible Huawei backup equipment
• Electrical distribution design
• Loads designated for backup

This distinction is important because a battery is only one component of a complete backup-power solution.

Professional system sizing should determine exactly which household or commercial loads need to remain powered when grid electricity fails.

5kWh vs 10kWh vs 15kWh Huawei LUNA2000

Choosing the correct storage capacity depends on daily energy consumption.

Huawei LUNA2000 5kWh

Uses one LUNA2000-5-E0 module.

Ideal for customers with lighter evening loads or those starting with a smaller battery system.

Huawei LUNA2000 10kWh

Uses two LUNA2000-5-E0 modules.

Provides twice the usable storage and increases Huawei’s specified maximum output capability to 5kW.

Huawei LUNA2000 15kWh

Uses three LUNA2000-5-E0 modules.

Designed for households or properties requiring substantially greater overnight or backup energy capacity.

Huawei officially supports all three configurations within the S0 platform.

LUNA2000-5-E0 vs 48V Lithium Batteries

The Huawei LUNA2000-5-E0 should not be compared directly with ordinary 51.2V 100Ah rack-mount lithium batteries based only on the 5kWh capacity.

The LUNA2000 is a high-voltage proprietary energy-storage system designed to operate with compatible Huawei inverters and the LUNA2000 power-control module.

A conventional low-voltage battery may use a 48V/51.2V architecture and connect to a wide variety of compatible low-voltage inverters.

The Huawei approach instead emphasizes:

• High-voltage architecture
• Huawei inverter integration
• Module-level optimization
• FusionSolar monitoring
• Modular expansion
• Coordinated system control

Customers should therefore select the battery architecture based on the inverter and overall solar-system design rather than price per kWh alone.

Professional Installation Is Essential

The Huawei LUNA2000 is a high-voltage battery system and should be installed and commissioned by technicians familiar with Huawei Smart PV equipment.

Before installation, verify:

• Exact Huawei inverter model
• Inverter firmware
• Battery compatibility
• Required power-control module
• Number of battery modules
• Backup requirements
• Communication connections
• Battery mounting position
• Huawei FusionSolar commissioning
• AC and DC protection
• Earthing
• Required system clearances
• Environmental conditions

Huawei specifically states that improper energy-storage-system installation can compromise both product warranty and operational safety.

Why Buy Huawei LUNA2000-5-E0 in Kenya?

The Huawei LUNA2000-5-E0 5kWh Battery Module is an excellent option for customers already investing in the Huawei Smart PV ecosystem.

Its key advantages include:

5kWh usable energy

100% DoD under specified conditions

Safe LiFePO4 battery chemistry

High-voltage architecture

Module-level energy optimization

Expandable from 5kWh to 30kWh

Huawei SUN2000 inverter compatibility

FusionSolar ecosystem integration

IP66 protection

Outdoor and indoor installation capability

Natural convection cooling

Wide operating-temperature range

International battery certifications.

Buy Huawei LUNA2000-5-E0 5kWh High-Voltage Battery Module in Kenya

Looking for a premium Huawei LUNA2000-5-E0 5kWh High-Voltage Battery Module in Kenya?

The LUNA2000-5-E0 provides 5kWh of usable LiFePO4 energy storage, 100% depth of discharge under specified test conditions, intelligent module-level optimization, IP66 protection and flexible expansion from 5kWh to 30kWh within Huawei’s Smart String Energy Storage ecosystem.

It is an excellent solution for Huawei residential solar systems, hybrid solar installations and expandable battery-storage projects using compatible Huawei SUN2000 equipment.

Important: The LUNA2000-5-E0 is the battery module only. A complete operational S0 battery system requires the separately ordered Huawei LUNA2000-5KW-C0 Power Control Module and compatible Huawei inverter.

Choose the Huawei LUNA2000-5-E0 for intelligent high-voltage solar storage, deep Huawei system integration and scalable energy capacity for your home or business.
