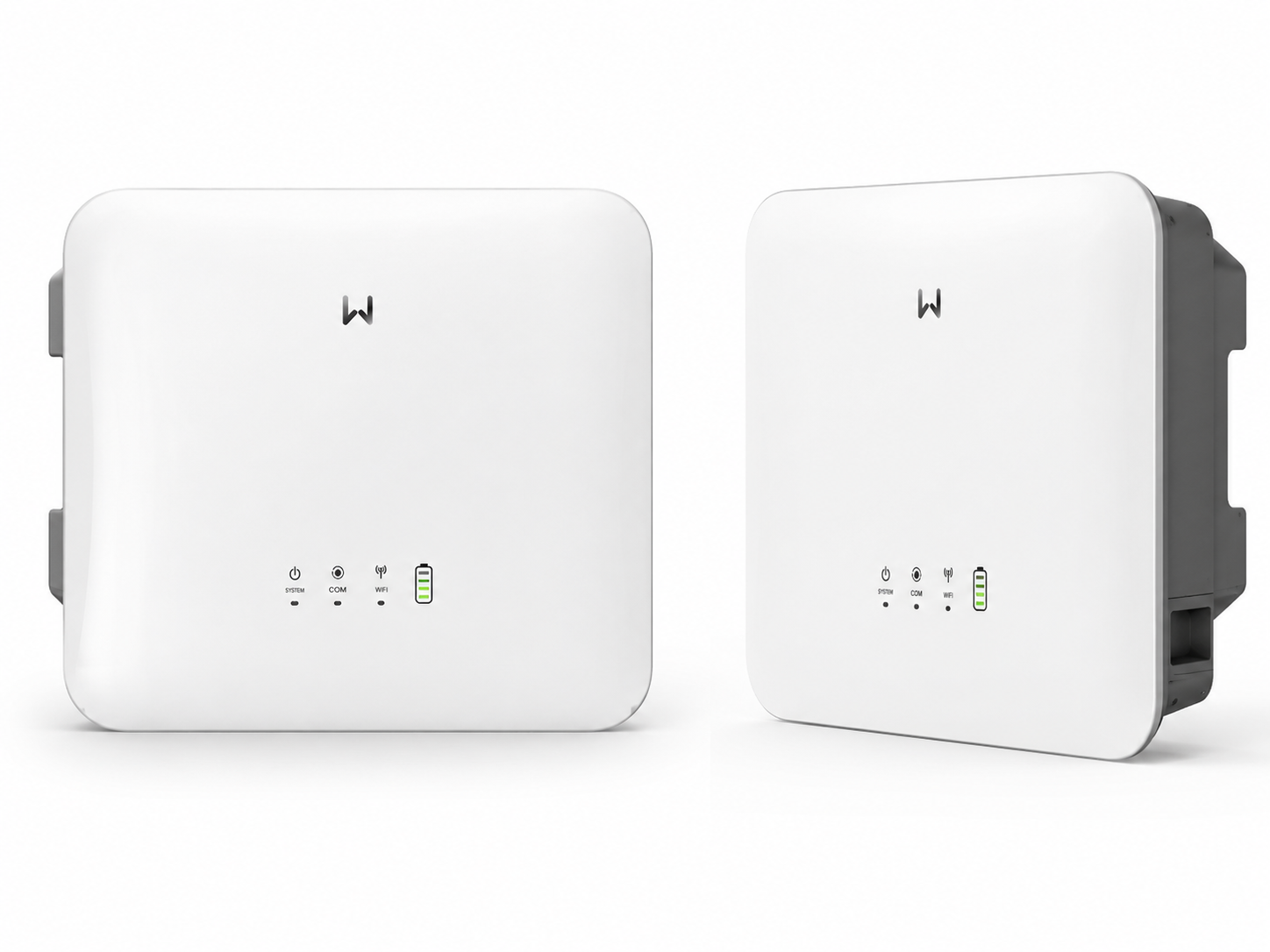

GoodWe 5kW Hybrid Solar Inverter in Kenya

The GoodWe 5kW Hybrid Solar Inverter in Kenya is a high-efficiency single-phase solar inverter designed for homes, offices and small businesses that want to reduce electricity costs, store solar energy and maintain reliable backup power during grid outages.

The GoodWe GW5000-ES-20 ES G2 combines a 5kW hybrid inverter, dual MPPT solar charge controller, 48V low-voltage battery interface and intelligent energy-management system in one compact unit. It can manage power from solar panels, batteries and the utility grid while automatically directing energy according to the system configuration.

With up to 7.5kW maximum PV input, 120A battery charging and discharging, 600V maximum PV voltage, two MPPT trackers, 97.6% maximum efficiency and less than 10ms backup transfer, the GoodWe GW5000-ES-20 is an excellent choice for modern residential solar and energy-storage installations in Kenya.

GoodWe GW5000-ES-20 Key Features

The GoodWe 5kW Hybrid Inverter provides a strong combination of solar generation, battery storage and backup capability.

Key features include:

• 5,000W rated AC output
• 5,000VA backup output
• Up to 10,000VA backup surge for 10 seconds
• 7,500W maximum solar PV input
• 600V maximum PV voltage
• Dual MPPT solar tracking
• 16A maximum PV current per MPPT
• 23A maximum short-circuit current per MPPT
• 48V nominal battery system
• 40–60V battery operating range
• 120A maximum continuous battery charging current
• 120A maximum continuous battery discharge current
• Up to 5,000W battery charging power
• Up to 5,300W battery discharge power
• 97.6% maximum inverter efficiency
• 99.9% MPPT efficiency
• <10ms UPS-level backup switching
• Lithium-ion and lead-acid battery compatibility
• CAN battery communication
• RS485 smart-meter communication
• Wi-Fi, Wi-Fi + LAN and optional 4G monitoring
• Natural convection cooling
• IP65 protection
• Remote shutdown capability
• Optional AFCI protection.

5kW Single-Phase Hybrid Power

The GoodWe GW5000-ES-20 provides 5,000W rated AC output power for single-phase electrical systems.

It is suitable for properly designed installations supplying loads such as:

• Refrigerators and freezers
• Lighting
• TVs
• Wi-Fi equipment
• Computers
• CCTV
• Office equipment
• Home electronics
• Small pumps
• Selected kitchen appliances
• Other suitable household and commercial loads

The inverter supports nominal AC voltages of 220V, 230V or 240V at 50Hz or 60Hz, with a maximum grid-output current of approximately 22.7A.

Up to 7.5kW Solar PV Input

One of the biggest advantages of the GoodWe 5kW Hybrid Solar Inverter is its ability to accept up to 7,500W of solar-panel input.

This allows the solar array to be larger than the inverter’s 5kW rated AC output.

Oversizing the PV array can improve energy production during:

• Early mornings
• Late afternoons
• Cloudy periods
• Lower solar irradiation
• Seasonal changes in solar production

The exact number of solar panels should be calculated from the module wattage, Voc, Vmp, current and temperature characteristics rather than total wattage alone.

Dual MPPT Solar Tracking

The GW5000-ES-20 incorporates two independent MPPT trackers, with one PV string connection per MPPT.

Dual MPPT technology provides greater flexibility when solar panels are installed on different sections of a roof.

For example, one MPPT can manage panels installed on one roof orientation while the second MPPT operates another solar string independently.

This can improve solar harvesting where roof orientations or sunlight conditions differ.

600V Maximum PV Input Voltage

GoodWe specifies a maximum PV input voltage of 600V DC for the GW5000-ES-20.

Its solar-input specifications include:

Maximum PV power: 7,500W
Maximum PV voltage: 600V
MPPT operating range: 60–550V
Start-up voltage: 58V
Nominal PV voltage: 360V
Maximum current per MPPT: 16A
Maximum short-circuit current per MPPT: 23A.

The relatively wide MPPT voltage range gives installers flexibility when designing residential solar strings.

PV string voltage must always remain within the inverter’s limits, including after temperature correction.

48V Low-Voltage Battery System

The GoodWe 5kW Hybrid Inverter works with a 48V nominal low-voltage battery system.

GoodWe specifies a battery operating range of approximately:

40V–60V DC.

This makes the inverter suitable for compatible 48V and 51.2V lithium battery systems as well as approved lead-acid battery banks.

Low-voltage battery architecture makes the GW5000-ES-20 particularly attractive for residential energy-storage installations where widely available 48V-class batteries are preferred.

Lithium Battery Compatibility

The GW5000-ES-20 supports compatible lithium battery systems and communicates with supported battery-management systems through CAN communication.

Battery-to-inverter communication helps coordinate important operating parameters such as:

• State of charge
• Maximum charging current
• Maximum discharge current
• Battery voltage
• Battery protection status
• Charging and discharging limits

GoodWe specifically identifies the ES G2 platform as compatible with its Lynx Home U low-voltage battery and a wider range of compatible low-voltage batteries.

The exact battery model should always be checked against GoodWe’s current compatibility list before installation.

Lead-Acid Battery Compatibility

GoodWe’s technical specification also lists lead-acid battery compatibility for the GW5000-ES-20.

This gives customers flexibility when choosing between lithium and traditional battery technology.

However, battery charging voltages and current limits must be configured correctly for the selected battery chemistry.

120A Battery Charging and Discharging

The GoodWe GW5000-ES-20 supports up to:

120A maximum continuous charging current

120A maximum continuous discharge current.

GoodWe also specifies:

Maximum battery charging power: 5,000W

Maximum battery discharge power: 5,300W.

This provides strong battery performance for a 5kW residential hybrid inverter.

The actual charge and discharge power will also depend on the connected battery’s BMS limits and operating conditions.

Solar, Battery and Grid Energy Management

The GoodWe 5kW Hybrid Solar Inverter intelligently manages energy from several sources.

During sunny conditions, solar electricity can be used to power household or business loads directly.

Excess solar energy can then be stored in the battery.

When solar production decreases, the inverter can use stored battery energy to continue supplying the property.

Grid electricity remains available when required according to the configured operating mode.

This allows customers to increase solar self-consumption and reduce the amount of electricity purchased from the grid.

Reduce Electricity Bills

The GoodWe GW5000-ES-20 is particularly useful for customers whose main goal is reducing electricity costs with solar power.

During daylight hours, electricity generated by solar panels can directly replace electricity that would otherwise be purchased from the grid.

When solar production exceeds immediate consumption, the excess can be stored in compatible batteries for later use.

Stored solar energy can then support evening and nighttime loads, further increasing the value obtained from the solar installation.

Fast Backup Switching Below 10ms

One of the strongest features of the GoodWe ES G2 hybrid inverter is its fast backup switching.

GoodWe specifies UPS-level switching to backup mode in less than 10 milliseconds.

This rapid transition makes the inverter suitable for maintaining power to many sensitive household and office loads when grid electricity fails.

Typical backup loads can include:

• Internet routers
• Computers
• CCTV
• Lighting
• Refrigeration
• Security systems
• Home-office equipment
• Communication equipment

Actual backup time depends on battery capacity and connected electrical loads.

5kVA Backup Output

The GW5000-ES-20 provides 5,000VA nominal backup output.

This means the inverter can provide substantial power to designated backup circuits when operating from solar and battery storage.

Proper load separation is important so that the backup output is not overloaded during a grid outage.

Up to 10kVA Short-Term Backup Surge

GoodWe specifies short-duration backup capability of up to:

10,000VA for 10 seconds for the GW5000-ES-20.

This helps the inverter accommodate short starting surges from certain electrical loads.

Equipment with motors or compressors should still be evaluated individually because starting-current requirements vary considerably.

97.6% Maximum Efficiency

The GoodWe 5kW Hybrid Inverter achieves:

Maximum efficiency: 97.6%

European efficiency: 96.7%

Battery-to-grid maximum efficiency: 95.5%

MPPT efficiency: 99.9%.

High conversion efficiency helps ensure that more of the available solar and battery energy reaches the electrical loads instead of being lost during power conversion.

Smart Monitoring

The GoodWe ES G2 platform supports smart system monitoring through GoodWe’s digital ecosystem.

Communication options include:

• Wi-Fi
• Wi-Fi + LAN
• 4G
• RS485
• CAN.

The inverter can be monitored through GoodWe’s compatible applications and monitoring platform, allowing users and installers to view solar-system operation and energy performance.

Depending on the complete system configuration, monitoring can provide information about:

• Solar generation
• Battery state of charge
• Battery charging
• Battery discharging
• Grid consumption
• Load consumption
• System status
• Historical energy production
• Faults and alarms

Smart Load Control

The GoodWe ES G2 platform includes dry-contact smart load control.

This can be used in appropriately designed systems to control selected equipment according to energy availability or programmed operating conditions.

Smart load management can help customers make better use of surplus solar electricity.

Optional AFCI Protection

GoodWe lists optional AFCI protection on the DC side for the ES G2 platform.

Arc-fault protection can provide an additional level of safety by identifying abnormal DC arcing conditions in a solar installation.

The exact equipment configuration should be confirmed when ordering because AFCI is listed as an optional feature.

Integrated Electrical Protection

The GW5000-ES-20 incorporates several electrical protection functions.

These include:

• PV string-current monitoring
• PV insulation-resistance detection
• Residual-current monitoring
• DC reverse-polarity protection
• Anti-islanding protection
• AC overcurrent protection
• AC short-circuit protection
• AC overvoltage protection
• Integrated DC switch
• Type II DC surge protection
• Type III AC surge protection
• Remote shutdown
• Optional AFCI.

Appropriate external breakers, isolators, earthing and surge protection should still be included according to the complete system design.

Fanless Natural Convection Cooling

The GoodWe ES G2 5kW inverter uses natural convection cooling.

This eliminates the need for a conventional cooling fan during normal operation.

Benefits include:

• Quiet operation
• Fewer moving mechanical parts
• Reduced fan maintenance
• Good suitability for residential installations

Adequate installation clearances and ventilation should still be provided.

IP65 Protection

The GoodWe GW5000-ES-20 carries an IP65 protection rating.

This provides protection against dust and water ingress according to the IP65 classification.

The inverter is designed for wall-mounted installation and can be used in suitable indoor or outdoor environments when installed according to GoodWe requirements.

Wide Operating Temperature Range

GoodWe specifies an operating temperature range of:

-25°C to +60°C.

The inverter can operate at altitudes up to 3,000 metres, with power derating above 2,000 metres.

This makes the ES G2 suitable for a wide range of residential and commercial installation environments.

Compact Wall-Mounted Design

The GW5000-ES-20 has a compact physical design measuring approximately:

505.9 × 434.9 × 154.8mm

and weighing approximately:

21.5kg.

Its wall-mounted construction helps create a clean solar installation without requiring a large equipment area.

GoodWe GW5000-ES-20 Technical Specifications

Specifications are based on GoodWe’s current ES G2 technical documentation for the GW5000-ES-20.

Ideal for Home Solar Systems in Kenya

The GoodWe 5kW Hybrid Solar Inverter in Kenya is particularly suitable for medium-sized homes looking to combine solar generation with battery backup.

When professionally sized, a GoodWe system can support loads such as:

• Lighting
• Refrigerators
• Television
• Wi-Fi
• CCTV
• Computers
• Home-office equipment
• Small pumps
• General household electronics

Battery capacity should be selected according to the required backup duration and expected nighttime energy use.

Suitable for Offices and Small Businesses

The GoodWe 5kW hybrid inverter can also be used for suitable light-commercial applications.

Potential installations include:

• Offices
• Shops
• Clinics
• Schools
• Salons
• Small restaurants
• ICT installations
• Security systems
• Small commercial premises

Businesses operating during daylight hours can use solar energy directly to offset grid electricity consumption while the battery provides backup for critical equipment.

Excellent for Solar Self-Consumption

The GoodWe ES G2 is specifically designed to increase the amount of self-generated solar electricity consumed within the property.

A properly configured system can prioritize:

Solar power first for current loads.

Excess solar for battery charging.

Battery energy when solar production falls.

Grid electricity when additional energy is required.

This provides an effective approach for customers who want both lower electricity bills and dependable backup power.

Professional Installation Recommended

The GoodWe GW5000-ES-20 Hybrid Inverter should be installed by a qualified solar technician.

Correct system design should verify:

• Property load profile
• Maximum simultaneous load
• Solar-panel wattage
• Panel Voc and Vmp
• Solar-panel current
• PV string configuration
• Temperature-corrected Voc
• Battery capacity
• Battery BMS compatibility
• Maximum battery charge current
• Maximum battery discharge current
• DC cable sizing
• AC cable sizing
• Battery cables
• AC and DC breakers
• Surge protection
• Earthing
• Backup-load distribution
• Smart-meter installation
• Inverter firmware and battery settings

Correct sizing and configuration are essential for reliable performance and battery life.

Why Buy GoodWe 5kW Hybrid Solar Inverter in Kenya?

The GoodWe GW5000-ES-20 provides a strong combination of solar capacity, battery performance, backup power and intelligent energy management.

Its major advantages include:

5kW single-phase hybrid output

7.5kW maximum PV input

Dual MPPT solar tracking

600V maximum PV voltage

48V low-voltage battery compatibility

120A battery charging and discharging

5.3kW maximum battery discharge power

Less than 10ms backup transfer

Up to 10kVA short-term backup surge

97.6% maximum efficiency

99.9% MPPT efficiency

CAN lithium battery communication

Smart monitoring

IP65 protection

Fanless natural-convection cooling.

Buy GoodWe 5kW Hybrid Solar Inverter in Kenya

Looking for a reliable GoodWe 5kW Hybrid Solar Inverter in Kenya?

The GoodWe GW5000-ES-20 ES G2 combines 5kW AC output, 7.5kW solar PV capacity, dual MPPT tracking, 48V battery support, 120A battery charging and discharging, fast UPS-level backup and intelligent energy monitoring in one compact hybrid inverter.

It is an excellent choice for homes, offices, small businesses and modern solar-plus-storage installations that require lower electricity costs and reliable battery backup.

Choose the GoodWe GW5000-ES-20 for intelligent solar energy management, dependable backup power and efficient use of your solar and battery investment.
