Sun tree DC Circuit Breaker 550–1000V in Kenya
The Sun tree DC Circuit Breaker provides reliable protection for solar, photovoltaic, and energy-storage systems. It delivers fast response, strong arc-quenching performance, and dependable durability for long-term operation.
Key Features
- Short-circuit and overload protection
- High breaking capacity up to 6kA
- Reversible design with no polarity requirement
- Rated current options up to 63A
-
9mm opening distance for rapid arc interruption

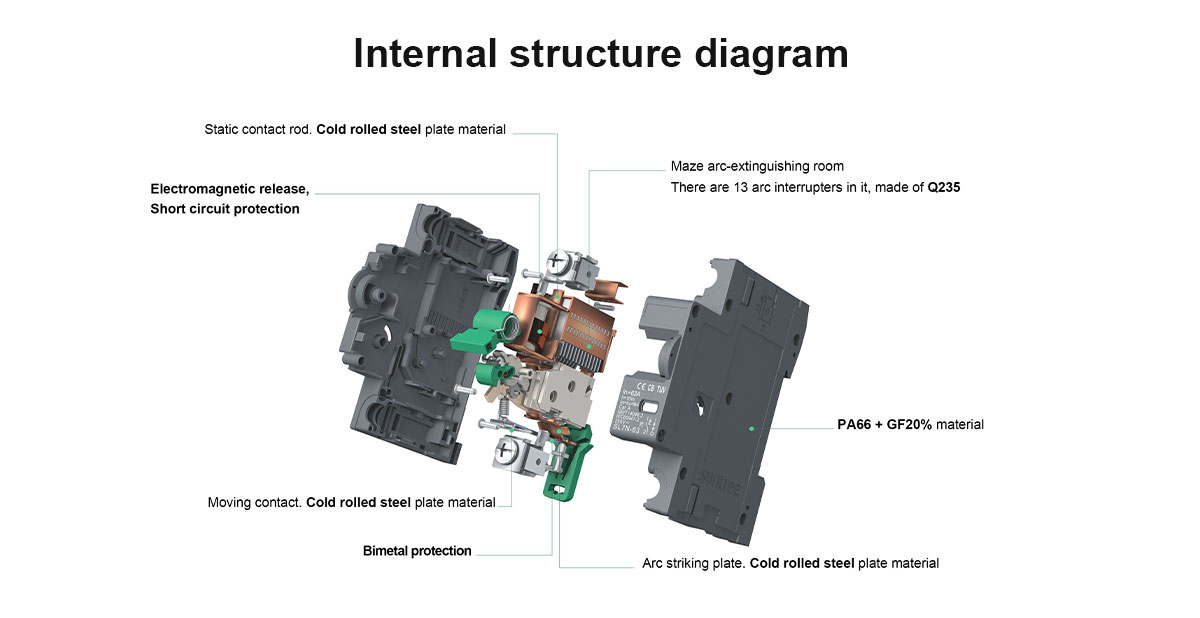

- Labyrinth arc-interrupter structure
- U-shaped magnetic blowing design to strengthen arc suppression
- 7-rivet wiring reliability
- Busbar-friendly layout for neat connections
- Modern, solid build
- Compatible with solar and energy storage systems
Technical Specifications
Model: SL7N-63
Rated insulation voltage (Ui): 1250V
Rated service voltage (Ue):
• 1P: 15V–250V DC
• 2P: 125V–800V DC
• 3P: 750V–800V DC
• 4P: 800V–1200V DC
Current ratings: 6A–63A
Breaking capacity: 6kA
Mechanical life: 8500 operations
Electrical life: 1000–1500 operations (depending on voltage)
Impulse withstand voltage: 6kV
Trip characteristics: B/C curve
Ingress protection: IP40 (terminal IP20)
Operating temperature: −30°C to 70°C
Storage temperature: −40°C to 85°C
Altitude rating: ≤2000m
Weight: 0.12kg per pole
Humidity: ≤95%
Accessories
Available options: OF, ISD, MX, MN, MX+OF
MX Control Voltage: DC 12V / 24V / 220V; AC 110V / 220V / 380V
MN Voltage: AC 220V / 380V
