Key Takeaways

• A DC Isolating Switch helps keep solar systems safe by stopping electric flow during repair or emergency.

• It protects panels, cables, batteries, and inverters from damage.

• Kenya uses DC switches in homes, schools, farms, and solar water pumps.

• Good brands last long, handle high heat, and support high solar voltage.

• Knowing the types helps you choose the right switch for your system.

• Buying quality switches from trusted solar shops in Kenya saves money and prevents accidents.

What a DC Switch Does for Solar Systems in Kenya

Solar power is growing fast in Kenya. Homes, shops, and farms use solar panels to save money and reduce power blackouts. But solar systems also need safety tools. One of the most important tools is the DC Isolating Switch. This switch helps you turn off the direct current from your solar panels when you need to clean, repair or check the system.

Many people know about AC switches found in normal houses, but solar panels produce DC power. DC can be more dangerous because it does not pass through zero like AC, so it creates a stronger arc when turned off. That is why using the right DC Isolating Switch is very important for safety.

Why Every Solar System Needs a DC Switch

A solar system in Kenya works through solar panels, charge controller, batteries, and inverter. When sunlight hits the panels, they make DC power. If something goes wrong, the current can keep flowing unless you stop it. With a DC Isolating Switch, you can quickly stop the power before checking the system.

Benefits include:

• Protecting your inverter from overload

• Making repairs safer

• Preventing electric shock

• Reducing risk of fire

• Keeping your solar investment safe

Many solar technicians in Kenya now make the switch mandatory in all installations, especially in homes and in buildings with rooftop solar.

Where the Switch Is Used in Kenya

A DC Isolating Switch is used in many places, such as:

• Residential solar systems

• Solar-powered shops and kiosks

• Schools using solar lighting

• Solar water pumping systems in rural areas

• Solar farms and small community grids

• Solar backup systems in offices

Because Kenya has high sun levels, DC switches must be strong and built for heat, dust, and outdoor weather.

Types of DC Isolating Switches

There are several types of switches used in Kenyan solar systems. Each type works for different system sizes and environments.

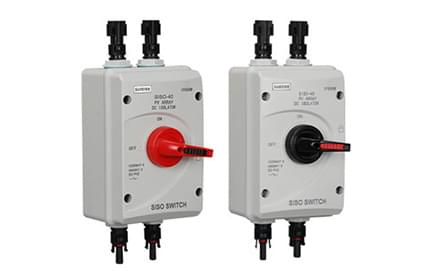

1. Rotary DC Isolating Switch

This type uses a turning knob to stop the current. It is the most common in Kenya. It is easy to turn and gives a clear ON and OFF position. It is often used near the inverter or outdoor solar array.

Best for: Home solar systems and medium-sized projects.

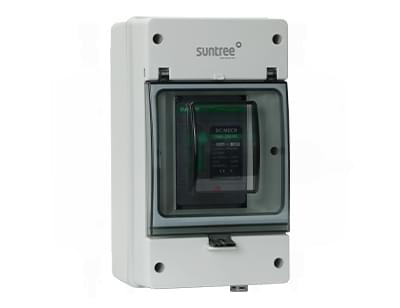

2. Enclosed Weatherproof DC Switch

This type is placed inside a sealed box. The box protects it from rain, dust, and strong sunlight. It is often installed close to solar panels on rooftops or farms.

Best for: Outdoor installations and solar water pumps.

3. 2-Pole DC Switch

This switch cuts both positive and negative wires at the same time. It makes the system safer during repair.

Best for: Small to medium solar systems.

4. 4-Pole DC Switch

Used in larger systems, especially high-voltage strings. It disconnects multiple lines at once.

Best for: Solar farms and large commercial buildings.

5. MCB-Based DC Isolators

These look like breakers but are used only as isolators. They are installed on DIN rails inside distribution boxes.

Best for: Panelboard-mounted solar systems and backup systems.

Popular Brands in Kenya

Kenya has many brands sold in solar shops and electrical stores. Some are budget friendly, while others are premium options.

1. Suntree

One of the most popular brands in Kenya. Known for strong materials, accurate ratings, and long life. Common in home systems and commercial setups.

2. YRO

A budget-friendly brand that still performs well. Used for solar kits and small installations.

3. Schneider Electric

A premium brand used in large institutions, factories, and solar farms.

4. ABB

Strong and reliable, good for both home and large systems. Costs more but lasts long.

5. Chint

Affordable and durable. Mostly used by technicians for medium systems.

6. Lovato Electric

High-quality, often used for large pump systems and industrial solar work.

Typical Prices in Kenya

Prices change based on brand, voltage, poles, and amps. Below are common market ranges:

• 32A DC isolator (2-Pole): KSh 900 to KSh 1,800

• 63A DC isolator (2-Pole): KSh 1,600 to KSh 3,000

• 63A DC isolator (4-Pole): KSh 3,500 to KSh 7,000

• Weatherproof isolator: KSh 2,500 to KSh 6,500

• Premium brands (Schneider / ABB): KSh 6,000 to KSh 12,000

These prices may change based on stock, shipping costs, and brand.

Performance Curves Explained Simply

Even in Grade-7 language, we can still explain how performance curves work.

A performance curve shows how the switch behaves when current increases. DC current can rise quickly when there is a fault, and the switch must be able to stop it without burning.

Most curves include:

• Rated current (example: 32A or 63A)

• Maximum DC voltage (example: 500VDC, 1000VDC)

• Breaking capacity (ability to stop high current)

• Temperature rating (Kenya is hot, so this matters)

For example:

Sample Curve Interpretation

• A 63A switch can handle 63 amps for long hours

• It can stop a sudden spike of maybe 800–1500 amps depending on the design

• If the temperature outside is high, like 40°C, the switch may have a reduced rating

This is why Kenyan installers always choose isolators with extra power margin.

Sample Datasheet (Simple Version)

Below is a simple, easy-to-understand datasheet example:

Model: 63A 2-Pole Solar DC Isolator

• Rated Voltage: 1000V DC

• Rated Current: 63A

• Poles: 2

• Switching Type: Rotary

• Installation: DIN Rail or wall mount

• Protection Level: IP66 (weatherproof)

• Max Operating Temperature: -25°C to +55°C

• Material: Fire-resistant plastic

• Breaking Capacity: 1500A

• Use: Inverter input, solar array disconnect

This is the type commonly used in many Kenyan solar setups.

How to Choose the Right Switch

Choosing the right isolator depends on your solar system size. Here are simple steps:

Step 1: Check system voltage

If your panels in series give 400V, choose a switch rated above that, such as 600V or 1000V DC.

Step 2: Check the current

If your panels produce 9–15 amps, choose a switch of at least 32A for safety.

Step 3: Check the location

Outdoor systems need weatherproof isolators.

Step 4: Check the brand

Quality matters. Cheap switches can melt during high current.

Step 5: Ask a technician

A qualified solar technician helps avoid mistakes.

Safety Tips

• Always turn the switch off before touching any solar wires.

• Do not install the switch near water leaks.

• Keep children away from the switch.

• If you smell burning plastic, stop using it and inspect immediately.

• Install the switch where you can reach it easily.

How Many DC Switches Do You Need?

A simple home system normally needs two:

1. One near the panels

2. One near the inverter

Larger systems may need more.

Solar Installations That Must Use a DC Isolating Switch

In Kenya, the following systems must use isolators:

• 1kW to 50kW home systems

• Solar water pump systems

• Hybrid inverters

• On-grid solar systems

• Solar streetlight chargers

• Solar farms

Kenya’s climate (hot sun, dust, and heavy rain) makes isolators even more important.

Why Quality Matters

A poor switch can:

• Melt under high heat

• Fail to stop power during a short circuit

• Cause fires

• Damage the inverter

Using a quality DC Isolating Switch is cheaper than replacing an inverter worth 40,000–200,000 KSh.

Maintenance Tips

• Dust the switch area every few months

• Check the ON and OFF movement to make sure it is not stiff

• Look for cracks on the casing

• Replace the switch after 5–7 years or sooner if damaged

Where to Buy in Kenya

You can buy a DC Isolating Switch from reliable suppliers.
One trusted shop is:

Water Equation & Solar System Ltd
They sell isolators, MCBs, inverters, solar panels, and other solar accessories at good prices.

Final Thoughts

Solar energy continues to grow in Kenya, and safety must come first. Using a strong DC Isolating Switch helps protect your home, your inverter, your family, and your investment. As more people and businesses switch to solar power, understanding isolators becomes more important. Choose quality, check ratings carefully, ask for technical help, and buy from trusted shops. With the right switch, your solar system will be safer, last longer, and give you peace of mind.
